Product Center
Professional RC engine series delivering high-performance, high-reliability power solutions for aviation enthusiasts.

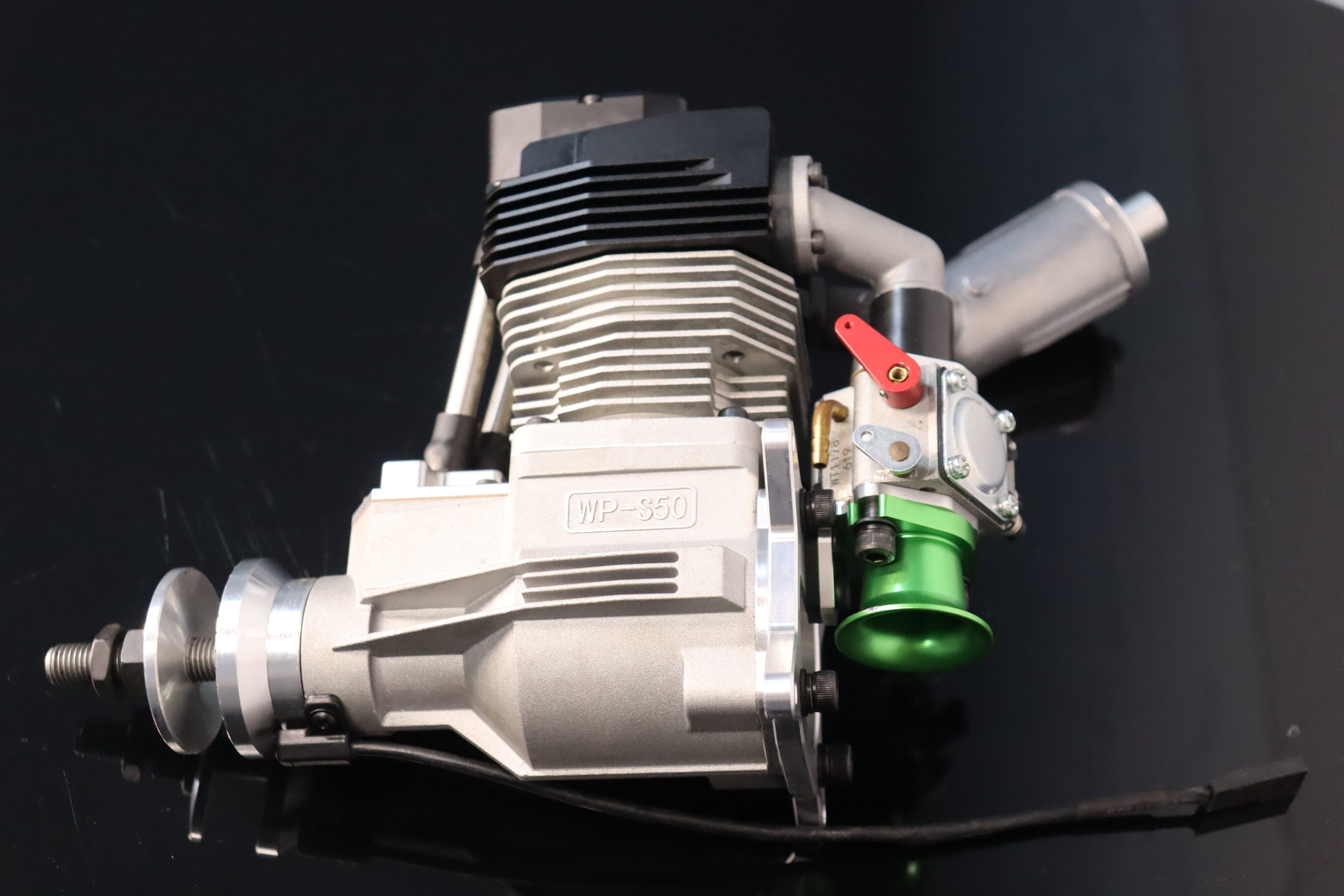

WP-S50 Single-Cylinder 4-Stroke Gasoline Model Engine
Power4.0 HP / 2.94 kW
Displacement50CC
Maximum RPM880 RPM
Propeller Compatible19x10-20x8-20x0
static pull forceAltitude 100m 9.2kg Altitude 1800m 8.5KG
Fits Spark PlugsCM6
WeightHost 1540g, Exhaust Pipe 85g, CDI1 20g
Compression Ratio8.5:1
Lubricant Ratio30:1
Bore and stroke44x33mm
Use fuelUse 95 grade gasoline.

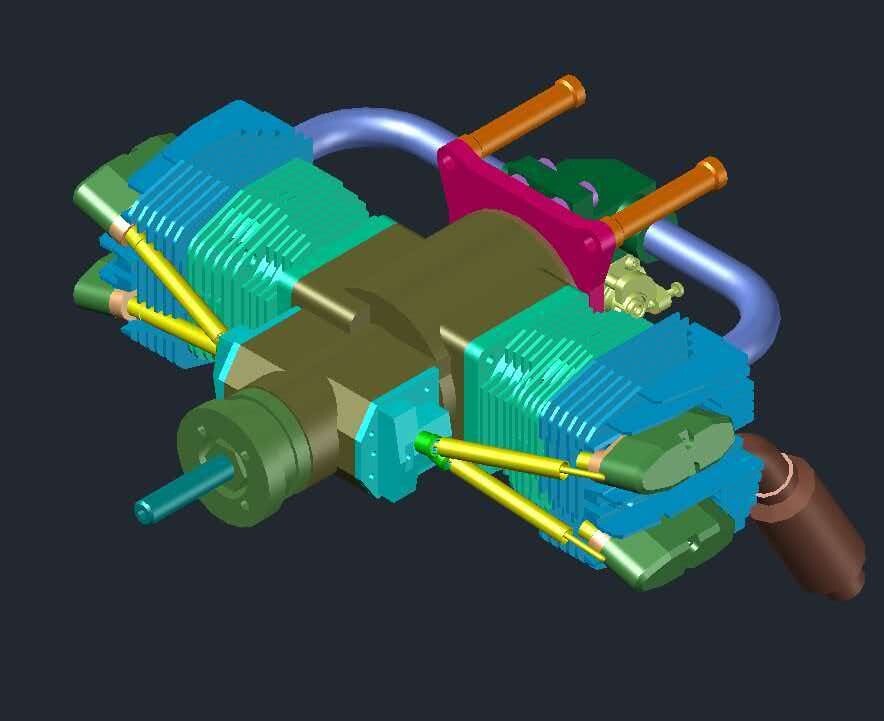

WP-S100T Horizontal Opposed 4-Stroke Engine
Power7.4 HP / 5.5 kW
Displacement100CC
Maximum RPM650 RPM
Propeller Compatible25x10-26x10
static pull force18.5kg
Fits Spark PlugsCM6
Weight2.2kg
Compression Ratio8.5:1
Lubricant Ratio30:1
Bore and stroke44x33mm

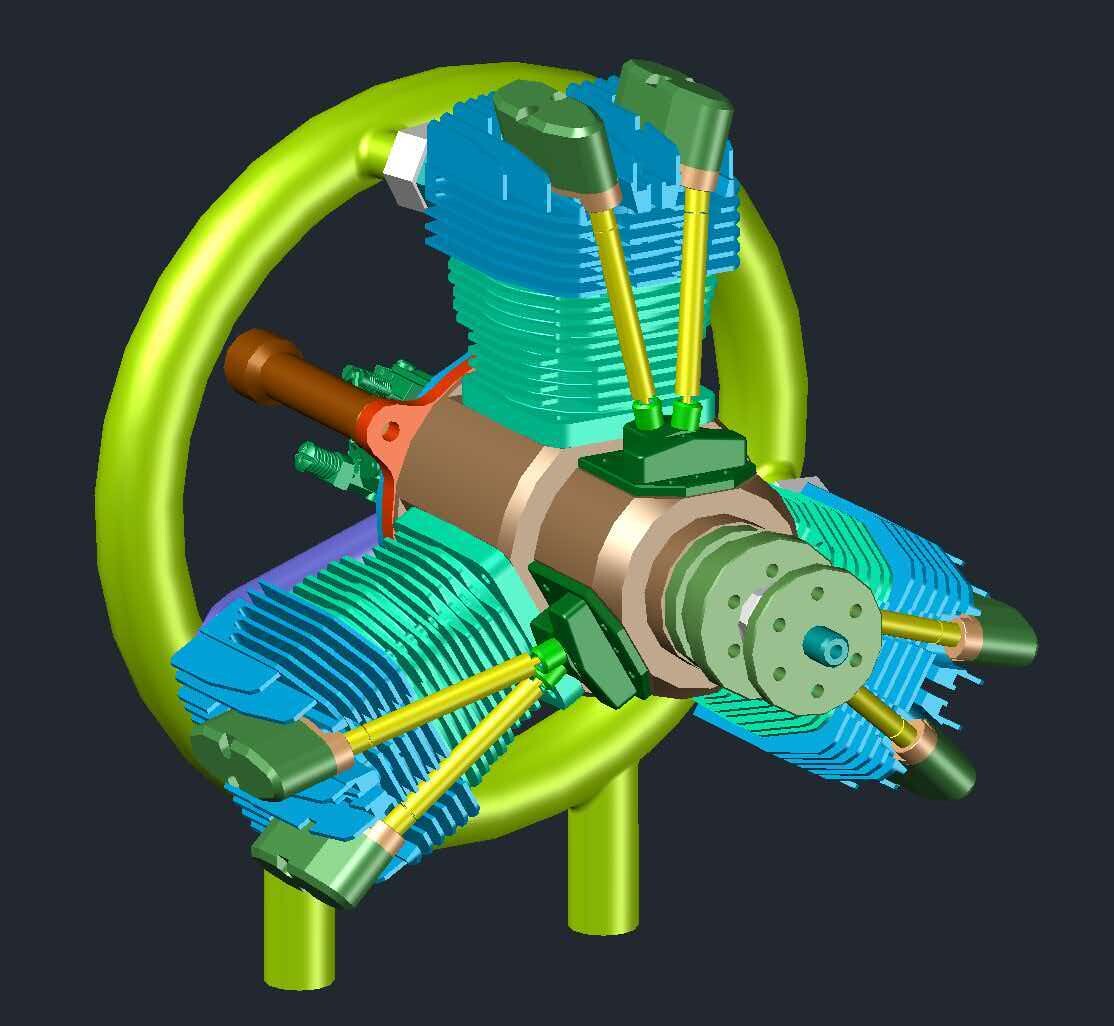

WP-S150S Three-Cylinder Radial Engine
Power9.7 HP / 7.2 kW
Displacement150CC
Maximum RPM600 RPM
Propeller Compatible28x12-29x12
static pull force22.5kg
Fits Spark PlugsCM6
Weight3.2kg
Compression Ratio8.5:1
Lubricant Ratio30:1
Bore and stroke44x33mm
Need a custom solution?
We provide customized engine development services for professional and international clients. Contact our technical team today.
